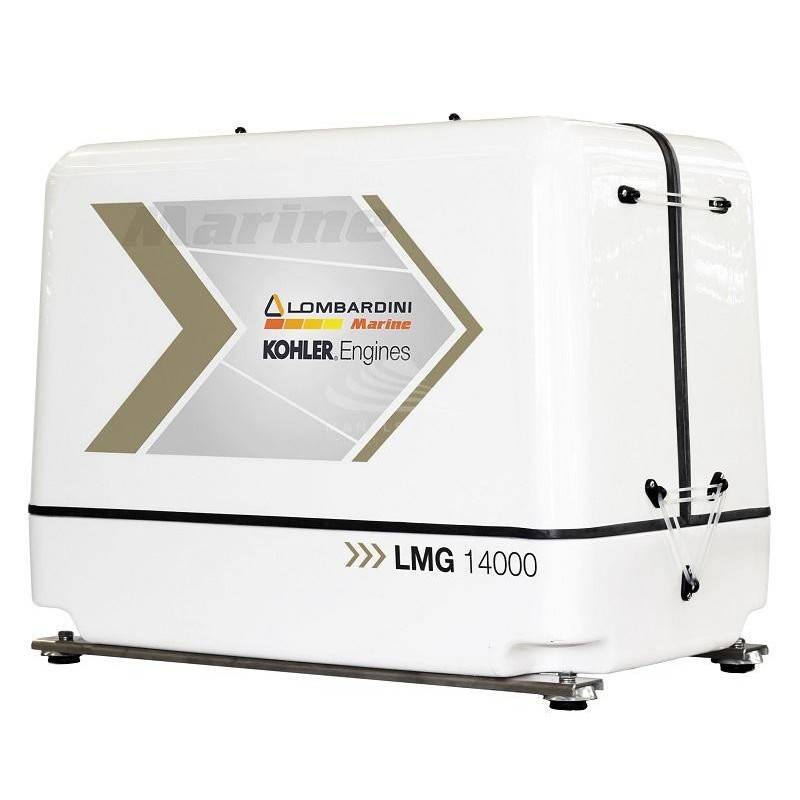

Lombardini LMG14000 Supersilenced 15 KVA Marine Generator

Lombardini LMG14000 single-phase 15 KVA marine generator with a 3000 rpm motor. The Lombardini LMG14000 marine generator is built with a soundproof capsule that makes it supersilenced. The Lombardini LMG14000 is built with a diesel-powered Lombardini LDW1003MG engine. The alternator of the Lombardini LMG14000 marine generator is synchronous, with brushes and AVR voltage regulator. With its compact size and low weight, the Lombardini LMG14000 marine generator is also suitable for installation on small or medium-sized boats.

Engine

The Lombardini LMG14000 is equipped with a FOCS (fully overhead controlling system) engine characterized by low noise, no vibration and small size.

Alternator

The Lombardini LMG14000 is built with a synchronous type alternator with brushes and water cooled. Thanks to the AVR voltage regulator the output voltage is practically constant between ''no load'' and rated power.

Cooling

The marine generator features FULL WATER cooling which involves both the engine and the alternator; sea water, through a special circuit, cools the fresh water of the engine, the oil and the external walls of the marine generator set alternator.

Remote Control Panel

The Lombardini LMG14000 is equipped with a remote control and command panel with 15 m of cable and quick connect connector, complete with high water temperature and low oil pressure warning lights. A display indicates hours of operation, voltage, current output and maintenance alerts. An additional control panel is available on request.

Specifications:

Phase : Single phase
Continuous power single phase (KW) : 12
Continuous power single phase (KVA) : 15
Fuel : Diesel
Frequency (Hz) : 50
Voltage (V) : 230
Engine : Lombardini LDW 1003 MG, 4 stroke
Engine rpm (rpm) : 3000
Engine capacity (cm³) : 1028
Number cylinders : 3
Cooling : Water
Alternator : Synchronous
Length (mm) : 865
Width (mm) : 480
Height (mm) : 620
Dry weight (Kg) : 200
Brushes : Yes
Product type : Generator
Voltage regulator : AVR
Engine manufacturer : Lombardini
